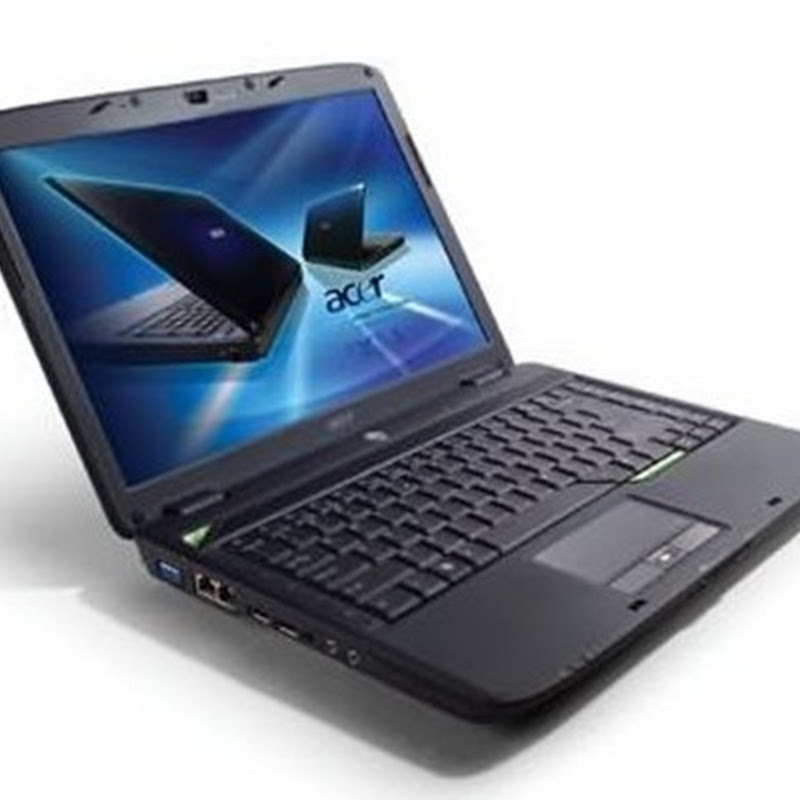

Acer TravelMate 4530 Notebook

TravelMate 4530

The new TravelMate 4530 empowered by the new AMD Turion™ X2 dual-core mobile technology comes in Acer's thin and light ProFile chassis, that has been developed for maximum productivity, efficient connectivity, and smart portability. The 14.1" widescreen panel in combination with the optional integrated Acer CrystalEye webcam, Acer InviLink™ wireless technology and Acer Video Conference VoIP solution ( optional), makes the new TravelMate 4530 the perfect solution to ensure maximum business efficiency wherever you are.

Benefits
Technical specifications

Style and security on the go

• The new TravelMate 4530 comes in Acer's smooth, streamlined and stylish ProFile chassis for great portability and professional style. Designed for the most demanding users who want to assure that critical data is safe and secure while doing business, the new TravelMate 4530 features the enhanced Acer Disk Anti-Shock Protection (DASP) and hard disk password management as well as Acer Bio-Protection fingerprint solution (on selected models) to offer maximum protection and reliability.

Fully connected

• The new TravelMate 4530 is a complete communication instrument which provides essential manageability tools to improve efficiency and performance. Offering solid wireless connectivity enhanced by Acer SignalUp™ wireless technology, Gigabit Ethernet-ready LAN connection and the enhanced Bluetooth® technology, the new TravelMate 4530 will create a highly mobile, flexible work environment. Back in the office, the Acer TravelMate 4530 can be easily expanded and connected via the Acer EzPort IV (optional) port replicator.

Technical Specification:

Operating System

• Genuine Windows Vista^® Business
• Genuine Windows Vista^® Home Basic
• Genuine Windows Vista^® Home Premium

Processor & chipset

• AMD Turion™ X2 dual-core mobile technology with up to 2 MB L2 cache, supporting AMD HyperTransport™ 3.0 technology
• ATI M780G chipset

Memory

• DDR2 memory, upgradeable to 4 GB using dual soDIMM modules (dual-channel support)
• * A 64-bit operating system is required to enjoy the ultimate performance of 4 GB memory.

HDD

• S-ATA hard disc drive with enhanced Acer DASP (Disk Anti-Shock Protection)

Storage

• DVD-Super Multi double-layer drive
• 5-in-1 card reader supporting Secure Digital™ (SD), MultiMediaCard (MMC), Memory Stick® (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)

Display

• 14.1" WXGA TFT LCD, 1280 x 800 pixel resolution, supporting simultaneous multi-window viewing via Acer GridVista™
• 16.7 million colours

Graphics

• ATI Radeon™ HD 3200 Graphics with up to 2048 MB of HyperMemory™ (256 MB of dedicated system memory, up to 1792 MB *) of shared system memory), supporting Unified Video Decoder (UVD), OpenEXR High Dynamic-Range (HDR) technology, Shader Model 4.0, Microsoft® DirectX® 10.0
  * depending on size of system memory!
• Dual independent display support
• MPEG-2/DVD decoding
• WMV9 (VC-1) and H.264 (AVC) decoding

Multimedia

• High-definition audio support
• Two built-in Acer 3DSonic stereo speakers
• Built-in microphone
• MS-Sound compatible

Communication

• Acer Video Conference via Acer CrystalEye webcam (optional)
• Integrated Acer Crystal Eye webcam, supporting enhanced Acer PrimaLite™ technology
  (on selected models)
• Acer InviLink™ Nplify™ 802.11b/g/Draft-N Wi-Fi CERTIFIED® network connection, supporting Acer SignalUp™ wireless technology
• Gigabit Ethernet, supporting ASF (Alert Standard Format) 2.0, Wake-on-LAN ready
• 56K ITU V.92 with PTT approval, Wake-on-Ring ready
• Bluetooth® 2.0+EDR (Enhanced Data Rate)
  (on selected models)

I/O Interfaces

• Acer EasyPort IV connector
• 1x PC Card slot (one Type II)
• 5-in-1 card reader (SD™, MMC, MS, MS PRO, xD)
• Acer Bio-Protection fingerprint reader
  (on selected models)
• 3 x USB 2.0 ports
• HDMI™ port
• 1 x External display (VGA) port
• 1 x Headphones/speaker/line-out jack
• 1 x Microphone jack
• 1 x Line-in jack
• 1 x Ethernet (RJ-45) port
• 1 x Modem (RJ-11) port
• 1 x DC-in jack for AC adapter

Security

• Enhanced Acer DASP (Disk Anti-Shock Protection) HDD protection technology
• Acer Bio-Protection fingerprint solution (optional), featuring Pre-boot Authentication (PBA), computer protection, Acer ProfileLaunch, Acer FingerLaunch, Acer FingerNav
  (on selected models)
• Kensington lock slot
• BIOS user, supervisor, HDD passwords

Power supply and battery

• ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
• 48.8 W 4400 mAh 6-cell Li-ion battery pack for up to 2.5-hour battery
• 79.9 W 4800 mAh 9-cell Li-ion battery pack for up to 4-hour battery life (optional)
• 2.5-hour rapid charge system-off
  3.5-hour charge-in-use
• 3-pin 65 W AC adapter
• ENERGY STAR® 4.0

Keyboard & special controls

• 88-/89-key Acer FineTouch™ keyboard with 5-degree curve, inverted "T" cursor layout, 2.5 mm (minimum) key travel
• Touchpad pointing device with Acer Bio-Protection fingerprint reader *), featuring Acer FingerNav 4-way control function * Fingerprint reader on selected models
• 12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad, international language support, independent US dollar and Euro symbol keys
• Empowering Key
• Easy-launch buttons: email, Internet, user-programmable
• Productivity keys: Lock, Presentation, Sync
• Front-access communication switches: WLAN, Bluetooth®*
  *Active on models with Bluetooth only!

Weight & Dimensions

• 338 (W) x 247 (D) x 31/41 (H) mm (13.31 x 9.7 x 1.22/1.61 inches)
• 2.29 kg (6.36 lbs.) with 6-cell battery pack

Quality & Reliability Tests

• Temperature and Humidity test
• Free Drop test
• Acoustics test
• Weight and Pressure tests
• Spillage test
• Shock and Vibration tests
• Electrostatic Discharge Immunity test
• MTBF (Mean Time Between Failure) test
• Hinge life test
• Keyboard-switch Life test

Software

• Acer Empowering Technology (Acer eDataSecurity, ePower, eRecovery, eSettings Management)
• Acer Bio-Protection
  (on selected models)
• Acer Crystal Eye
  (on selected models)
• Acer GridVista™
• Acer Launch Manager
• Acer Video Conference Manager
  (on selected models)
• Adobe® Reader®
• Corel® WinDVD®
• Microsoft® Office Ready 2007
• McAfee Internet Security Suite 60-day trial version (or equivalent)
• NTI Media Maker™
• NTI Shadow™

Options

• Acer EasyPort IV
• Acer Bluetooth® VoIP phone featuring Acer Video Conference Manager (optional only on select models)
• Memory expansion modules
• Additional Li-Ion battery pack
• Additional AC adapter
• External USB floppy disk drive

Certifications

• ACPI 3.0
• Mobile PC 2002
• DMI 2.0
• Wi-Fi®

Warranty

• 1 year International Travelers Warranty (ITW)
