Panasonic Toughbook MIL-STD-810G

Workhorse Rugged Laptop Stands Up to Any Environment

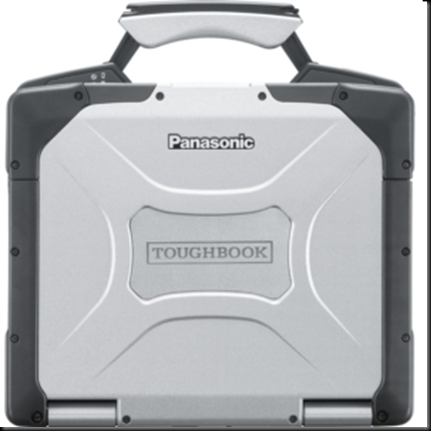

MIL-STD-810G and 6-foot drop certified¹ for ruggedness, the award-winning Toughbook® 30* offers the ultimate in durability. The fully-rugged mobile computer features Windows Vista® Business (with XP downgrade option), a 13.3” optional sunlight-viewable 1,000 nit touchscreen display with Panasonic CircuLumin™ technology, Intel® Centrino® 2 with vPro™ technology and 160GB shock-mounted HDD. In addition, the Toughbook 30 is mobile broadband ready, comes standard with draft-n Wi-Fi and Bluetooth®, with optional integrated Gobi™ mobile broadband. The rugged, reliable Toughbook 30 enables real-time access to information even in the harshest environments thanks to IP65 certified¹ sealed all-weather design.
* Model CF-30K is available with Intel® Centrino® 2 with
vPro™ technology.

Operating System

Genuine Windows Vista^™ Business (with XP downgrade option)



CPU

Intel^® Core™ 2 Duo Processor SL9300
- Intel^® Centrino^® 2 with vPro™ technology
- Processor speed 1.6Ghz
- 6MB L2 cache
- 1066MHz FSB



Storage

160GB HDD shock-mounted and quick-release

Memory

2048MB SDRAM (DDR2-667MHz) standard, expandable to 4096MB



Display

13.3" 1024x768 XGA LCD
- Optional touchscreen: 9-1000 nit sunlight-viewable with Panasonic CircuLumin™ technology
- Non-touchscreen: 500 nit

External video support

Intel^®GMA 4500MHD

Concealed mode



Audio

Analog Devices AD1883 compliant audio codec

Intel® high-definition audio compliant

Integrated speaker

Convenient keyboard volume and mute controls



Expansion Slot

PC Card Type II x 1

SD Card (SDHC)

ExpressCard/54 x 1



Multimedia Pocket

Will accept optional Combo or DVD Super MULTI Drive, or 2nd battery



Keyboard & Input

Touchscreen LCD (only with touchscreen model)

87-key with dedicated Windows® key

Pressure sensitive touchpad with vertical scrolling support

Integrated stylus holder (only with touchscreen model)



Interface

Port replicator

External video

Headphones/speaker

Microphone/line in

Serial

Ext. antenna conn.

USB 2.0 (x 3)

IEEE 1394a (FireWire)

10/100/1000 ethernet

56K modem



Wireless

Optional integrated Gobi™ mobile broadband

Intel® Wireless WiFi Link 5100 802.11a/b/g/draft-n

Bluetooth® v.2.0 + EDR (Class 1)

High-gain antenna pass-through



Power Supply

Lithium Ion battery pack (10.65V, 8550mAh)

Battery operation: 9 hours (Vista), 10 hours (XP) -- 12.5 hours (Vista), 14 hours (XP) including optional 2nd battery

Battery charging time: 5hrs. off/ 8.5hrs. on

AC Adapter



Power Management

Suspend / Resume Function, Hibernation, Standby, ACPI BIOS



Security Features

Password Security: Supervisor, User, Hard-Disk Lock

Cable Lock Slot

Trusted Platform Module (TPM) security chip V.1.2

Computrace^® theft protection agent in BIOS

Fingerprint reader (option)

SmartCard reader (option)



Integrated Options

Gobi™ mobile broadband (EV-DO Rev. A, HSPA)

250GB HDD (shock-mounted)

GPS

Backlit keyboard

SmartCard reader

Fingerprint reader

HDD and battery lock



Durability Features

MIL-STD-810G certified (6' drop)¹

MIL-STD-461F certified

IP65 certified¹

UL1604 certified model

CCX Certified v4

HDD heater

magnesium alloy case w/hand strap

Shock-mounted, quick-release HDD





Dimensions & Weight



11.5"(L) x 11.9" (W) x 2.7-2.8"(H)

8.4 lbs.





Warranty

3-year limited warranty, parts & labor



Disclaimer

Download the Specification Sheet for the most current and detailed product information.
